Wedge Wire Vibrating Screen Panel

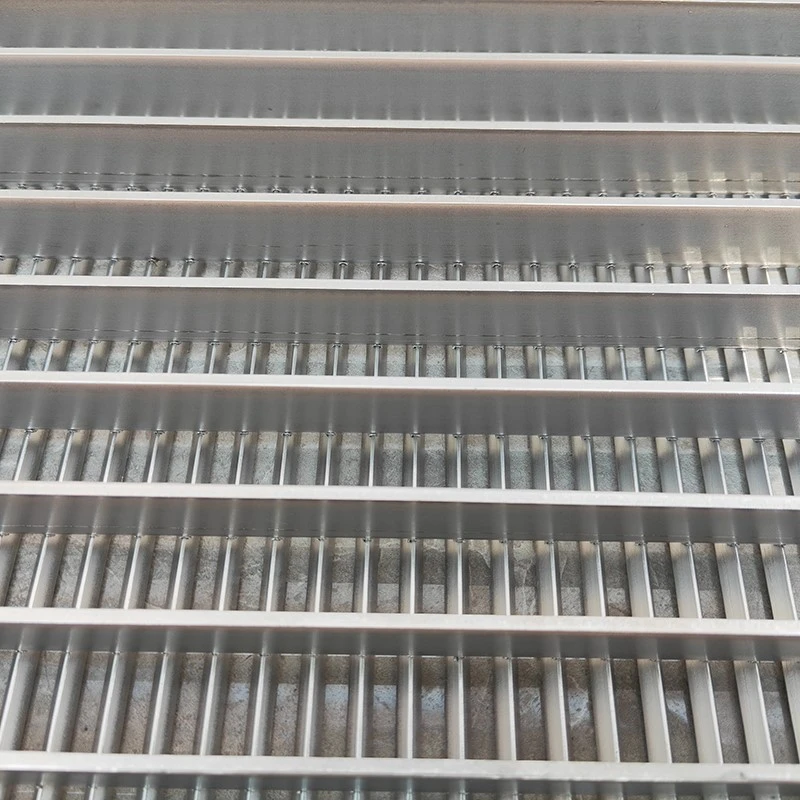

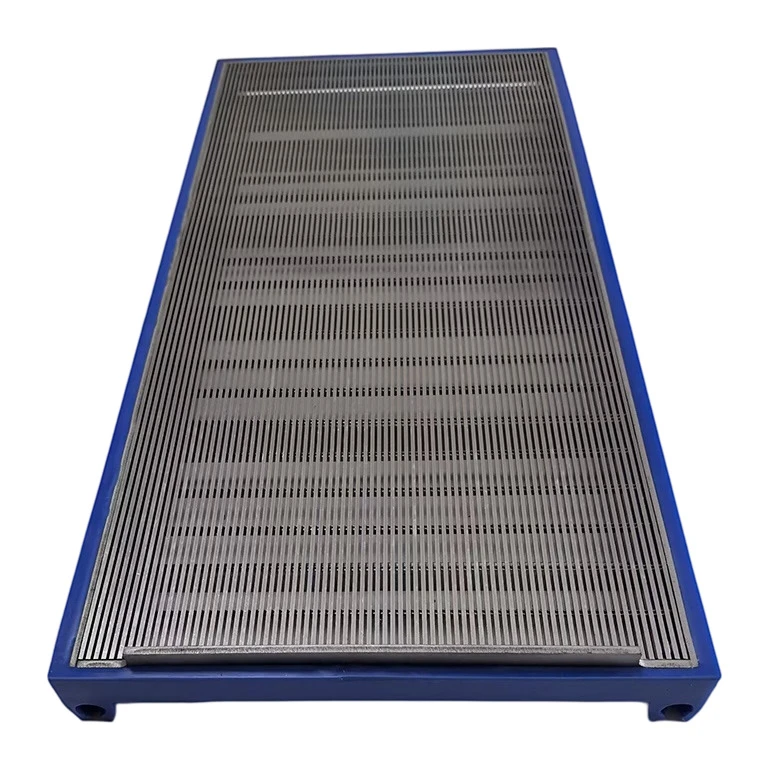

Wedge Wire Vibrating Screen Panel is a specially designed screening component for vibrating screen machines used in material classification, dewatering, and separation processes. It is manufactured with stainless steel wedge wires and support rods through resistance welding technology, forming a rigid screening surface with high strength and stable performance.

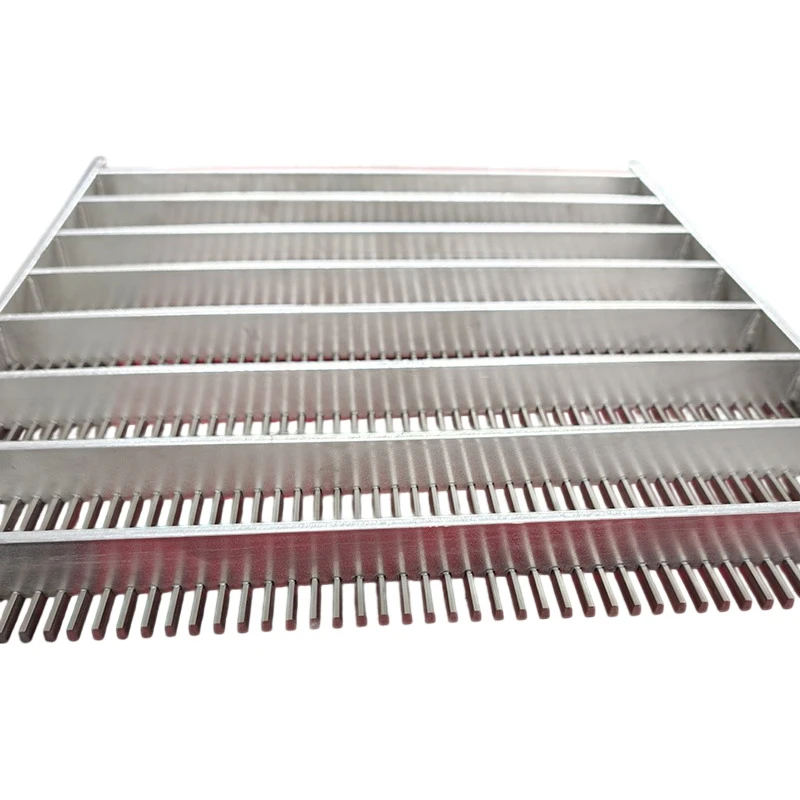

The panel structure is designed for continuous vibration environments. The welded connection between wedge wires and support rods provides strong mechanical stability, helping the screen maintain its shape under repeated vibration, material impact, and long-term operation. This makes it suitable for industries where screening equipment operates under demanding conditions.

The V-shaped slot structure is the key feature of this Wedge Wire Vibrating Screen Panel. The external opening is narrower while the internal passage is wider, allowing materials to move through efficiently and reducing the chance of particles becoming trapped. This design helps improve screening efficiency and reduces cleaning requirements during operation.

During operation, the smooth wedge wire surface allows materials to move across the screen with reduced resistance. Compared with traditional woven screens, the continuous slot design provides more stable opening accuracy and better resistance to clogging.

The product is commonly used in vibrating screens, dewatering screens, and high-frequency screening equipment. It is suitable for applications involving minerals, coal, sand, gravel, and other industrial materials requiring classification or moisture removal.

Different slot openings, wire profiles, and support structures can be selected according to material size, equipment vibration intensity, and load requirements. For stronger vibration conditions, larger wire profiles and reinforced support designs can be provided.

The factory has extensive experience in manufacturing wedge wire screening products and can customize screen panels according to equipment models and customer requirements. Production includes raw material inspection, precision welding, dimensional checking, and final quality inspection before shipment.

The manufacturing process focuses on maintaining slot accuracy, welding strength, and structural stability. Customers can provide drawings or equipment parameters, and the engineering team can assist with product structure confirmation before production.

Samples can be provided before mass production to verify dimensions and technical requirements. This helps ensure the final Wedge Wire Vibrating Screen Panel matches the customer's screening system.
