What Is a Wedge Wire Mesh Filter Core

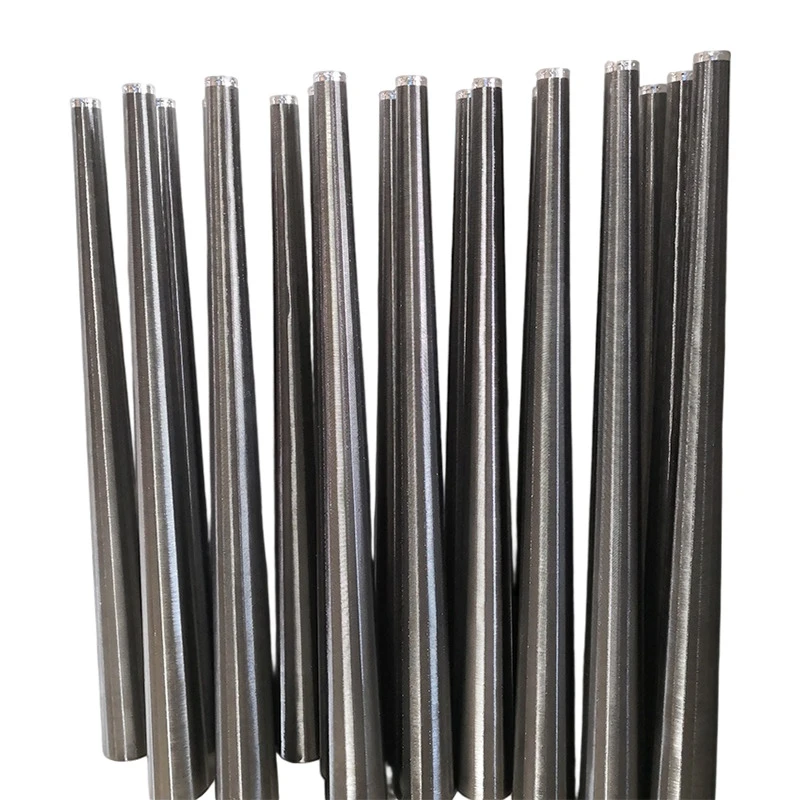

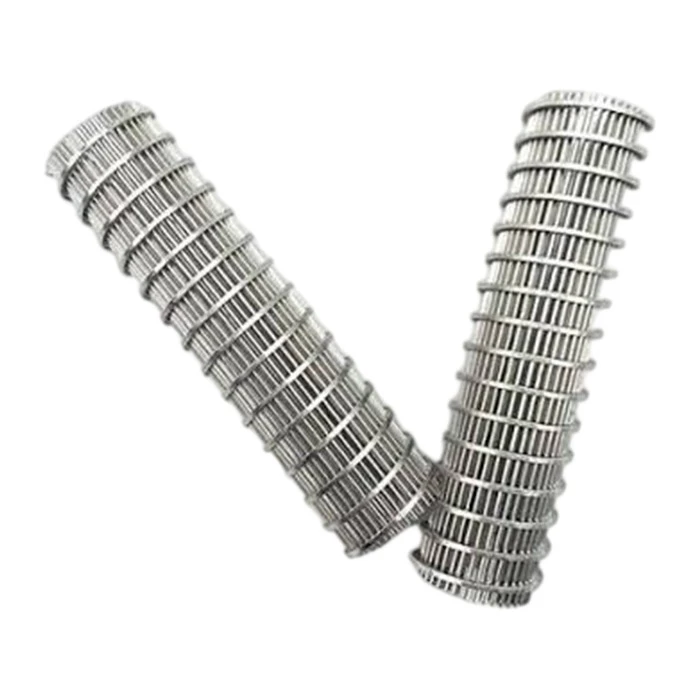

A wedge wire mesh filter core is a cylindrical filtering component constructed from V-shaped profile wires. The wire is wound around and welded to a cage of longitudinal support rods. The result is a rigid, all-welded tube with continuous V-shaped slots. This construction offers higher mechanical strength compared to woven wire mesh cartridges. The core can withstand pressure differentials, external collapse forces, and vibration without deforming or failing. It is designed for installation into standard or custom filter housings and can be manufactured with a variety of end fittings to suit different equipment configurations.
Slot Geometry and Backwashing Performance
The V-shaped slot is the defining characteristic of this filter core. The slot is narrower at the outside surface and wider internally. This shape minimizes particle wedging. When a particle enters the slot, it touches the wire edge at only two points, so it cannot become tightly stuck. During backwashing, the wider internal opening allows the particle to release easily. This means the core can be cleaned and reused many times without losing filtration efficiency. The slot opening is manufactured to tight tolerances, typically ±0.03 to ±0.05 mm, ensuring consistent particle retention. Slot sizes range from 0.025 mm to 3.0 mm, with most industrial applications using openings between 0.1 and 1.0 mm. The continuous slot design also contributes to high open area, typically between 15% and 60%.
Material Selection for Different Applications
The choice of material is based on the specific operating conditions of each installation. Standard stainless steels (304 and 316L) are suitable for water and mild chemical applications. For corrosive media, such as chloride-rich water, acidic solutions, or high-temperature hydrocarbons, we supply higher-grade materials including 2205 duplex stainless steel, 904L, Hastelloy C276, and titanium. The material selection directly impacts the working life of the core. Proper material selection ensures the core maintains its structural integrity and filtration performance throughout its service life.
Applications Across Industries
Wedge wire mesh filter cores are used in a wide range of liquid and gas filtration applications. In water treatment, they are used as resin traps and strainers in intake water filtration. In petrochemical refining, they serve as catalyst recovery filters. In pharmaceutical manufacturing, they are used for sterile filtration and product recovery. The cores are also used in food processing for juice clarification, beer filtration, and syrup polishing.
Custom Manufacturing Process
Anping County Yan Zhao Mining Sieve Mesh Co., Ltd. specializes in the production of wedge wire filter products. Our facility operates more than 60 production units. Each core is custom manufactured to customer specifications. We support OEM/ODM services and can produce to technical drawings or customer-provided samples. For custom cores, we confirm material grade, slot opening, outer diameter, length, and end connection type before production. A sample can be provided for confirmation before mass production. Lead time typically ranges from 7 to 30 days.
Procurement Support and Quality Assurance
We offer flexible ordering with no mandatory minimum quantity. For custom products, our payment term is 50% deposit by T/T and 50% balance before shipment. We accept EXW, FOB, and DDP trade terms. A 100% final inspection is performed before packing. For international shipping, we use fumigation-free plywood boxes. Each core is individually wrapped with rust-preventive paper and foam padding. We accept third-party inspections for large orders.
Product Specifications
|
Parameter |
Description |
|
Material |
304, 316L stainless steel; 2205 duplex, Hastelloy, titanium on request |
|
Slot Opening |
0.025–3.0 mm (customizable), tolerance ±0.03–0.05 mm |
|
Outer Diameter |
25–1200 mm (custom) |
|
Effective Length |
50–3000 mm (custom) |
|

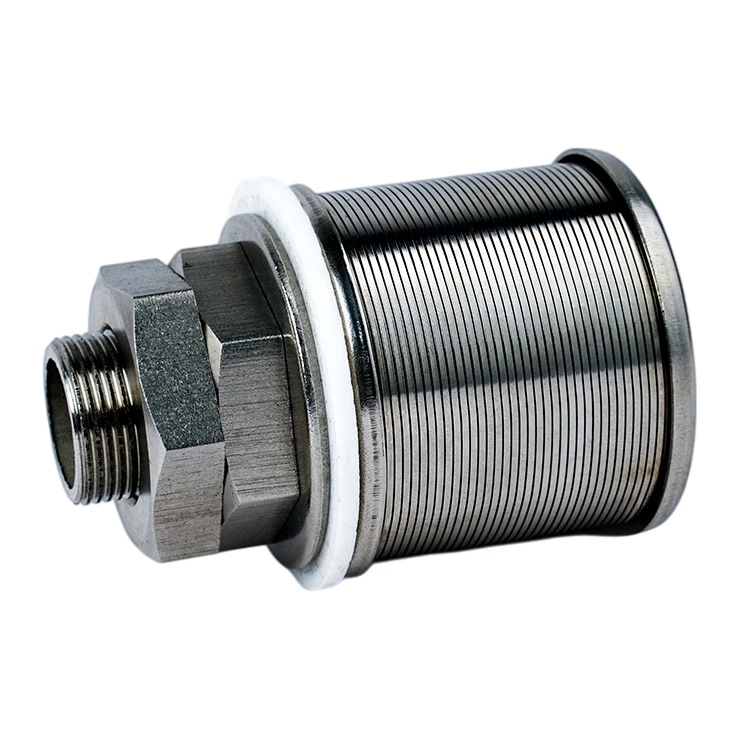

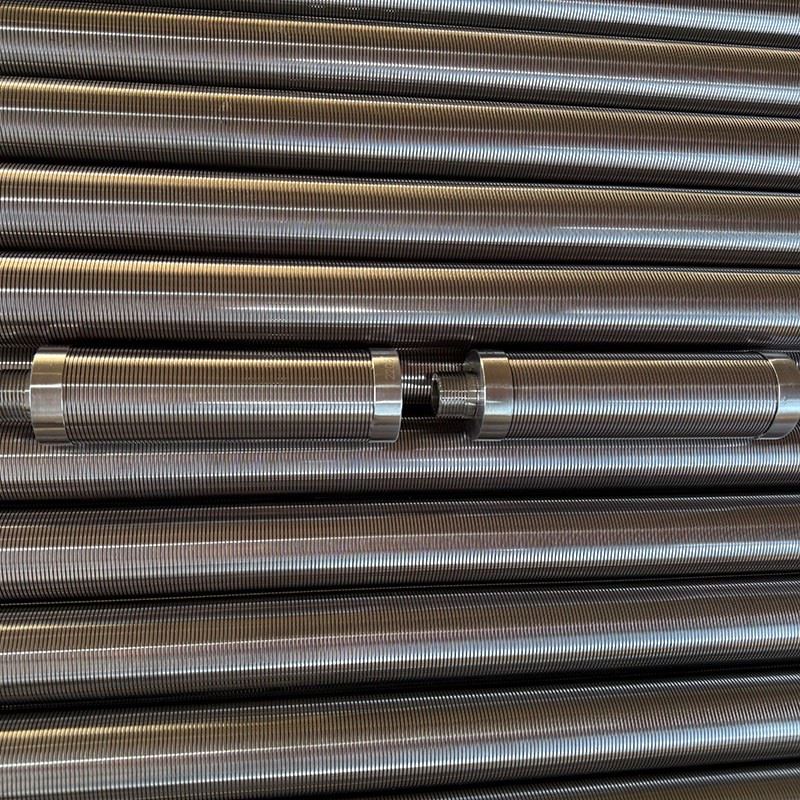

End Connections |
Plain, flanged, threaded, Tri-clamp, weld bevel |
|
Open Area |
15%–60% |
|
Surface Finish |
Pickled and passivated; electropolished for food/pharma applications |
