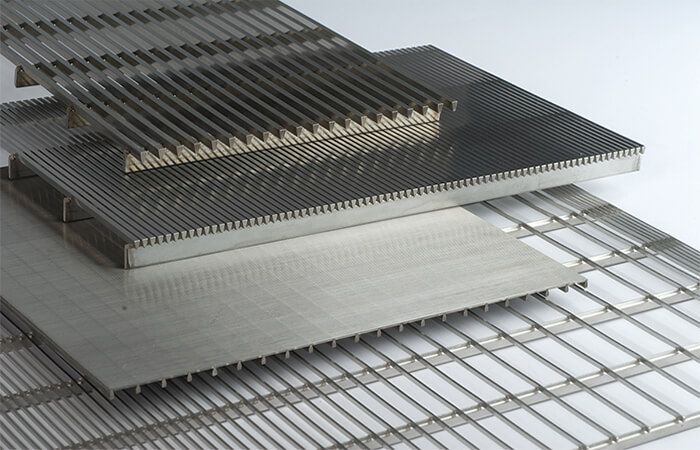

Wedge Wire Welded Screen Panel

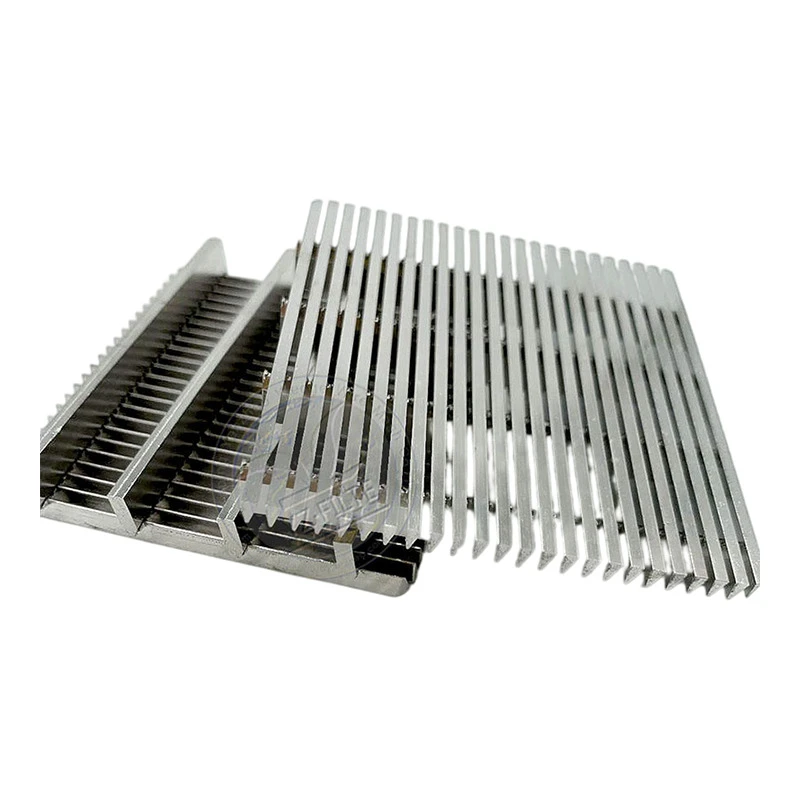

Wedge Wire Welded Screen Panel is a rigid screening solution manufactured by welding V-shaped wedge wires and support rods together through resistance welding technology. Each contact point between the wire and support structure is firmly welded, creating a stable screening surface with high structural strength.

The welded construction allows the panel to maintain accurate slot dimensions during operation. Compared with conventional mesh products, the continuous wedge-shaped openings provide smoother material passage and improved resistance to blockage. This makes the panel suitable for screening systems where stable separation performance and reduced maintenance are required.

The special slot geometry allows materials to pass through with lower resistance while preventing particles from becoming tightly trapped inside the openings. This design improves cleaning efficiency and supports continuous industrial operation.

The structure of this Wedge Wire Welded Screen Panel is designed for applications involving mechanical stress, vibration, and material impact. The integrated welding structure provides excellent rigidity and helps prevent deformation during repeated operation.

The panel can be manufactured in flat or curved forms according to equipment requirements. Different wire dimensions, support rod arrangements, and slot openings can be selected based on load requirements and screening conditions.

Materials including 304 and 316L stainless steel are available for different environments. Additional materials can be customized when higher corrosion resistance or special performance is required.

The manufacturer specializes in wedge wire filtration products and has more than 20 years of production experience. Equipped with more than 60 sets of production equipment, the factory can process various specifications of flat and curved screen panels.

During manufacturing, material inspection, welding control, and finished product inspection are carried out to ensure product consistency. Before shipment, products are checked according to technical requirements and customer specifications.

The factory supports OEM and ODM production. Customers can provide drawings, samples, or application requirements for customized development. Before bulk production, samples can be provided for confirmation.
