Curved Screening Surface for Efficient Solid Liquid Separation

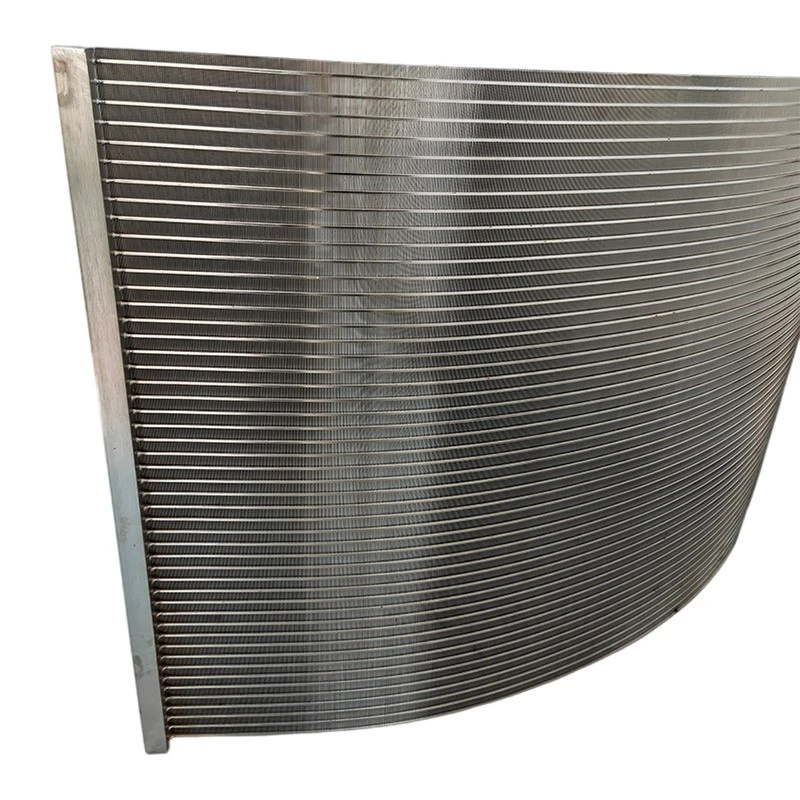

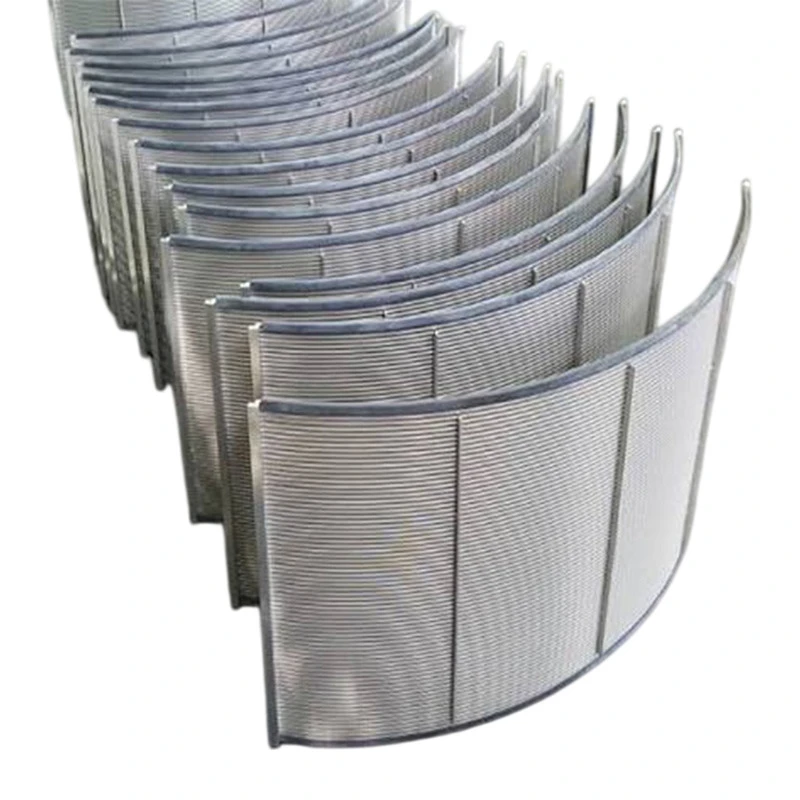

Wedge Wire Sieve Bend Screen is a curved screening component manufactured from stainless steel wedge wires welded with support rods. The curved structure is designed for pressure-fed screening equipment, where materials flow across the screen surface at a certain speed to achieve separation, classification, and dewatering.
Unlike flat screening surfaces, the curved design uses the movement force of slurry and material flow to improve separation efficiency. Liquid and fine particles can pass through the precision slots, while larger particles remain on the screen surface and move toward the discharge area.
The V-shaped slot design of this Wedge Wire Sieve Bend Screen provides excellent resistance to blockage. The narrow outer opening and wider inner passage reduce particle trapping, allowing the screen surface to maintain stable flow performance during continuous operation.
Precision Slot Control for Continuous Processing
The screening performance depends strongly on slot accuracy and surface quality. The wedge wire structure provides uniform openings across the screen surface, helping maintain consistent separation results.
The product can be customized with different slot sizes according to material characteristics and separation requirements. The smooth screen surface reduces material accumulation and makes cleaning easier, especially in applications involving slurry, liquid-solid mixtures, and fine particles.
The curved angle, width, and radius can be manufactured according to customer equipment drawings. This allows the screen to fit different pressure screens and curved screening systems.
Applications in Industrial Separation
Wedge Wire Sieve Bend Screen is widely used in coal washing, mineral processing, wastewater treatment, starch processing, food production, and other industries requiring continuous separation.
Typical applications include:
Coal slurry dewatering
Mineral slurry classification
Fiber separation
Solid-liquid separation processes
The stainless steel construction provides good corrosion resistance and mechanical strength for industrial working environments.
Customized Manufacturing and Technical Support
The factory provides customized production according to equipment specifications, including screen width, curvature, slot opening, and mounting structure.
Before production, technical details are confirmed according to customer requirements. The factory can provide support from material selection to manufacturing process confirmation, helping customers obtain a suitable screening solution.
Product Specifications
|
Specification Item |
Details |
|
Material |
304, 316L stainless steel; titanium, duplex steel, and Hastelloy can be customized |
|
Slot Opening |
0.025–3.0 mm; commonly 0.1–1.5 mm |
|
Arc Angle |
45°, 60°, 90°, 120° |
|
Profile Wire Size |
0.75×1.5 mm, 1×2 mm, 1.5×3 mm, 2×4 mm |
|
Open Area |
15%–60% |
