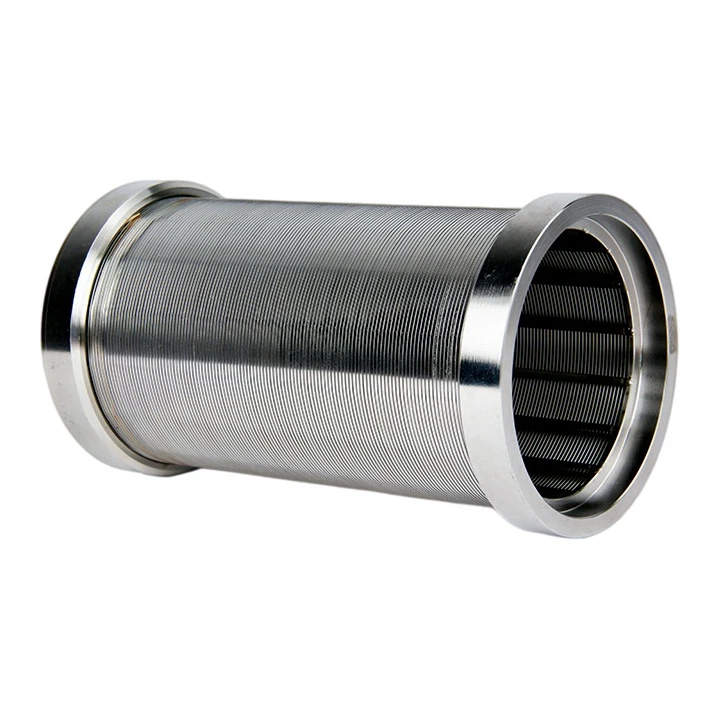

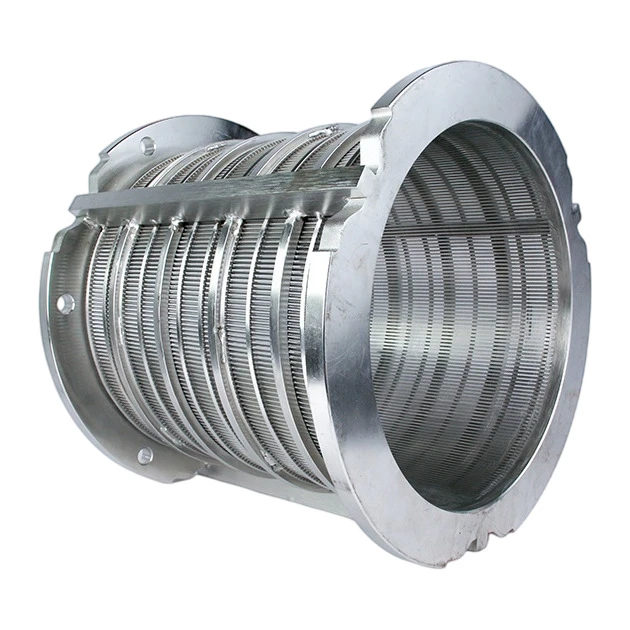

What Is a Wedge Wire Filter Cartridge
A wedge wire filter cartridge is a cylindrical filtration component manufactured from V-shaped stainless steel profile wires wound around and resistance-welded to a cage of longitudinal support rods. The result is a rigid, self-supporting cylinder with continuous V-shaped slots across its entire surface. This all-welded construction provides exceptional strength, enabling the cartridge to handle high differential pressures, external collapse loads, and internal burst pressures without deformation. The cartridge is designed to be installed into a filter housing and can be manufactured with various end fittings to match different equipment configurations.
Slot Design and Filtration Precision
The V-shaped slot geometry distinguishes the wedge wire cartridge from conventional filter media. The slot is narrow on the outside and progressively wider toward the inside. This shape allows particles to pass through the surface without becoming lodged. When a particle becomes trapped, it contacts the wire edge at only two points, reducing friction and making it easier to dislodge during backwashing. A cartridge with a 0.1 mm slot opening effectively captures particles of that size while maintaining good flow capacity. Slot tolerance can be held to ±0.03 to ±0.05 mm, ensuring consistent filtration performance. The combination of uniform slots, high open area, and anti-clogging geometry means the cartridge maintains its flow rate longer than woven mesh or perforated tube alternatives.
Construction and Material Options
The cartridge consists of three main components: the V-shaped profile wire that forms the filtration surface, the longitudinal support rods that provide structural strength, and the end fittings that connect to the filter housing. The profile wires and support rods are welded at every intersection, creating a single rigid assembly. Standard profile wire sizes include 0.75×1.5 mm, 1×2 mm, 1.5×3 mm, and 2×4 mm. For applications involving high pressure or significant vibration, the support rods are spaced more closely. Material selection depends on the fluid being filtered. We offer stainless steel 304 and 316L, 2205 duplex, 904L, Hastelloy C276, and titanium.
Typical Application Areas
Wedge wire filter cartridges are used in a wide range of liquid and gas filtration applications. In water treatment, they are used for resin capture in ion exchange systems and as strainers in intake water filtration. In petrochemical and refining, they serve as catalyst recovery filters and for product purification. In the pharmaceutical industry, they are used in the filtration of active ingredients and sterile processing. The cartridges are also found in food and beverage production for syrup filtration, beer polishing, and edible oil clarification. In the chemical industry, they are used for acid filtration and as protective strainers for pumps and valves.
Custom Engineering and Manufacturing
Anping County Yan Zhao Mining Sieve Mesh Co., Ltd. has been producing wedge wire filter cartridges for over 20 years. Our factory is equipped with more than 60 production units and operates under the ISO9001:2008 quality management system. Each cartridge is custom manufactured to customer specifications. We support OEM/ODM services and can produce to technical drawings or customer-supplied samples. For custom cartridges, we confirm material grade, slot opening, outer diameter, length, and end connection type before production. A sample can be provided for confirmation before mass production. Lead time typically ranges from 7 to 30 days.
Quality Control and Packaging
All incoming raw materials are inspected before production. In-process inspections verify slot uniformity and weld integrity. A 100% final inspection is performed before packing, during which every cartridge is checked for dimensional accuracy and slot consistency. We accept third-party inspections and can provide inspection reports. For export, each cartridge is individually wrapped with rust-preventive paper and padded with foam before being packed in fumigation-free plywood cases.
Product Specifications
|
Parameter |
Description |
|
Material |
304, 316L stainless steel; 2205 duplex, Hastelloy, titanium on request |
|
Slot Opening |
0.025–3.0 mm (customizable), commonly 0.1–1.0 mm, tolerance ±0.03–0.05 mm |
|
Outer Diameter |
25–1200 mm (custom) |
|
Effective Length |
50–3000 mm (custom) |
|
End Connections |
Plain, flanged, threaded, Tri-clamp, weld bevel, or custom |
|
Open Area |
15%–60% |
|
Surface Finish |
Pickled and passivated; electropolished for food/pharma applications |
