Stainless Steel Wedge Wire Screen Panel

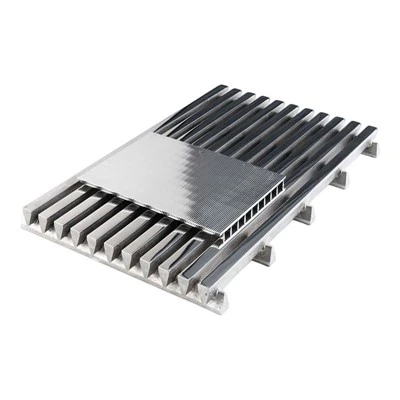

Stainless Steel Slotted Screen Panel is an industrial screening component designed for accurate separation, filtration, and material classification processes. The panel is manufactured by welding V-shaped profile wires and support rods together through resistance welding technology, creating a strong rigid structure with continuous and uniform slot openings. The special wedge wire design forms a narrow surface opening and wider internal passage, which helps maintain stable screening performance while reducing the possibility of particles becoming trapped inside the screen.

Different from traditional woven mesh or perforated plates, this Stainless Steel Slotted Screen Panel provides a smoother screening surface and more stable opening accuracy. The V-shaped slot structure allows materials to pass through efficiently, while unwanted particles are easier to remove during cleaning or backwashing operations. This design helps reduce screen blockage problems and lowers maintenance requirements in continuous industrial operation.

The product is available in stainless steel materials including 304, 304L, and 316L according to different working environments. For applications requiring higher corrosion resistance or special performance, other materials can also be customized according to actual conditions.

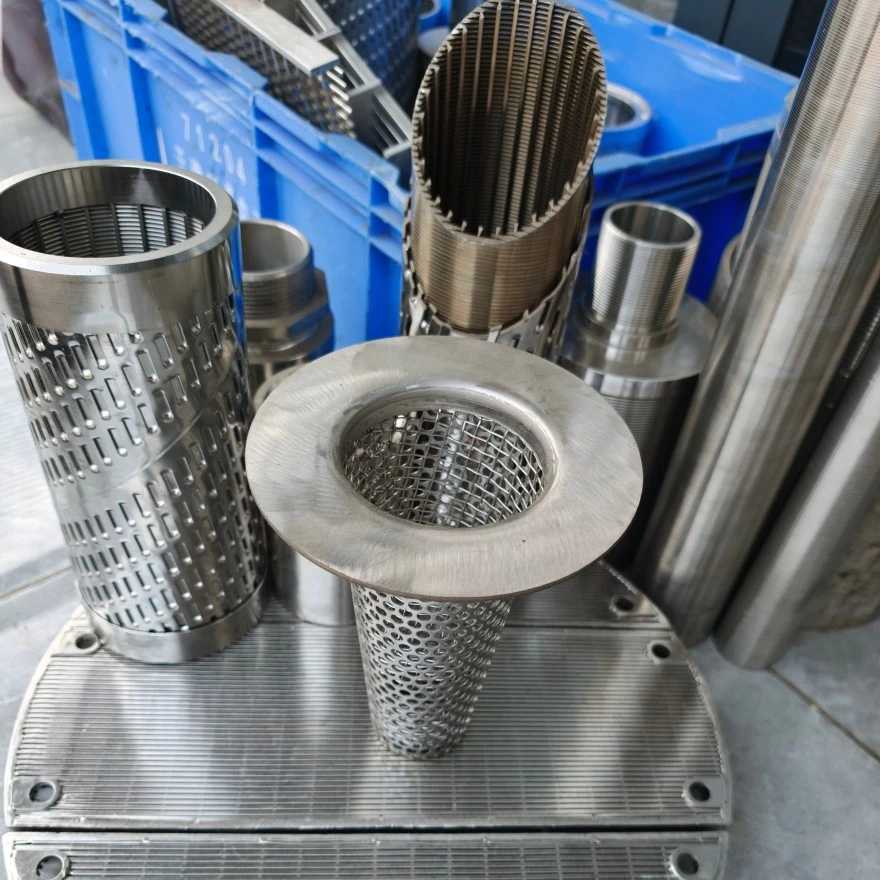

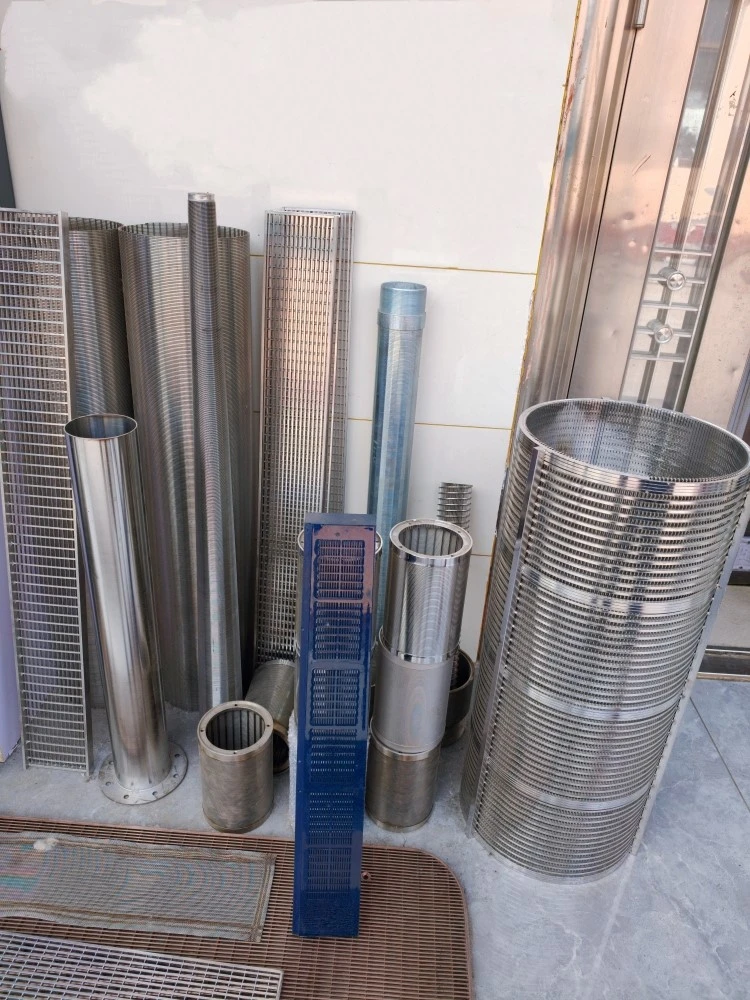

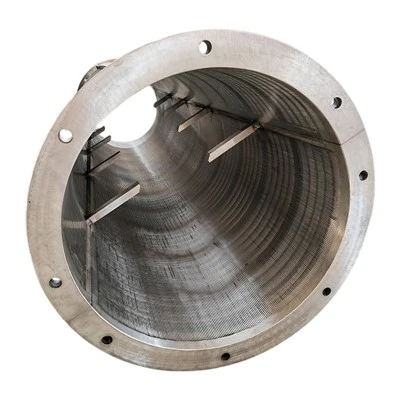

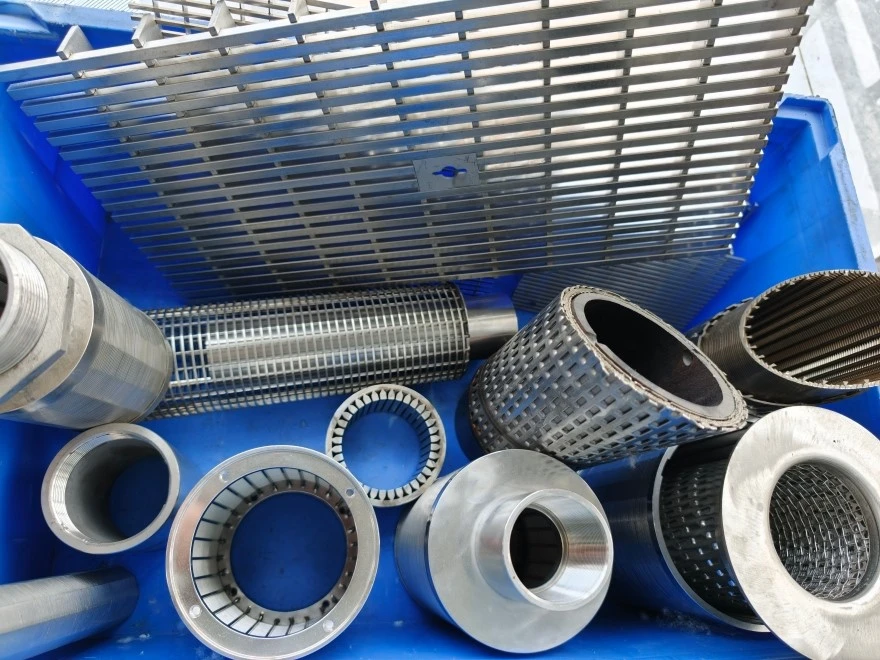

The overall structure of the screen panel is produced with welded connection between the wedge wires and support rods. Each connection point provides improved mechanical strength, allowing the screen to maintain its shape under pressure, vibration, and material impact. The rigid structure makes it suitable for manufacturing different screening forms, including flat panels, curved screen panels, and cylindrical screening components.

The slot opening can be customized according to separation requirements. The available slot range is designed to meet different particle classification and filtration needs, while the open area design helps improve material flow efficiency. Customers can select different wire profiles, support rod structures, and panel dimensions according to equipment requirements and operating conditions.

For installation convenience, optional stainless steel reinforcement frames can be added. Bolt holes, mounting slots, and other connection designs can be processed according to customer drawings, helping the screen panel fit different types of screening equipment.

The manufacturer has more than 20 years of experience in wedge wire filtration products and owns professional production equipment for wire processing and precision welding. The production process covers material preparation, wire forming, welding, and finished product inspection to ensure stable product quality.

Quality control starts from raw material inspection before production. During manufacturing, production inspections are carried out to monitor welding quality and slot accuracy. Before shipment, finished products are checked to confirm that the product dimensions, surface condition, and technical requirements meet customer specifications.

The factory supports OEM and ODM services. Customers can provide drawings, samples, or technical requirements, and the engineering team can assist with material selection, structure confirmation, and production planning. Samples can be provided before mass production for final approval.
