What Is a Stainless Steel Filter Basket

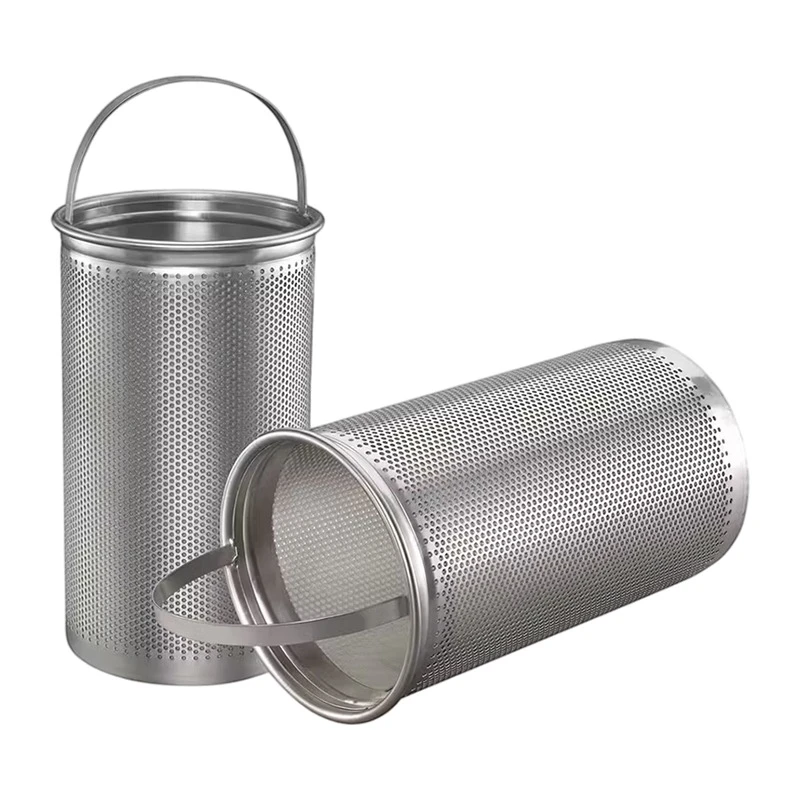

It is a removable filtration component installed inside a filter housing, pipeline strainer, or tank. It is manufactured in three primary constructions: perforated plate, wedge wire, and woven wire mesh. The basket is typically cylindrical or slightly conical in shape, with an open top for fluid entry and a closed or semi-closed bottom. A flange, rim, or lifting handle at the top allows for easy insertion and removal from the housing. The basket captures solid particles, debris, and contaminants from the fluid stream while allowing the clean liquid to pass through. It is a serviceable component designed to be periodically removed, cleaned, and reinstalled, making it a cost-effective solution for continuous filtration operations.
Construction Types and Performance Characteristics

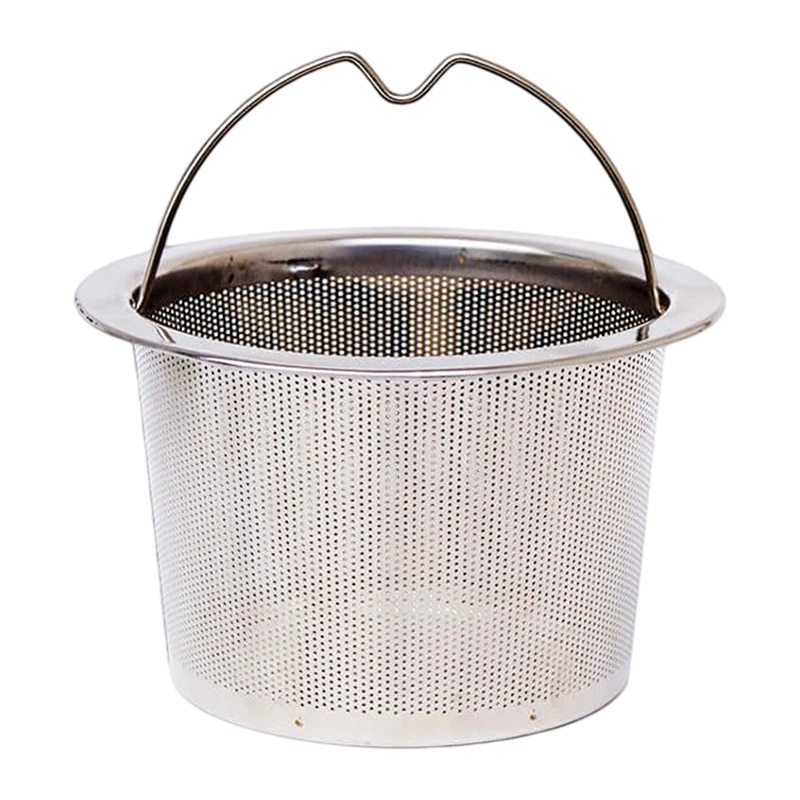

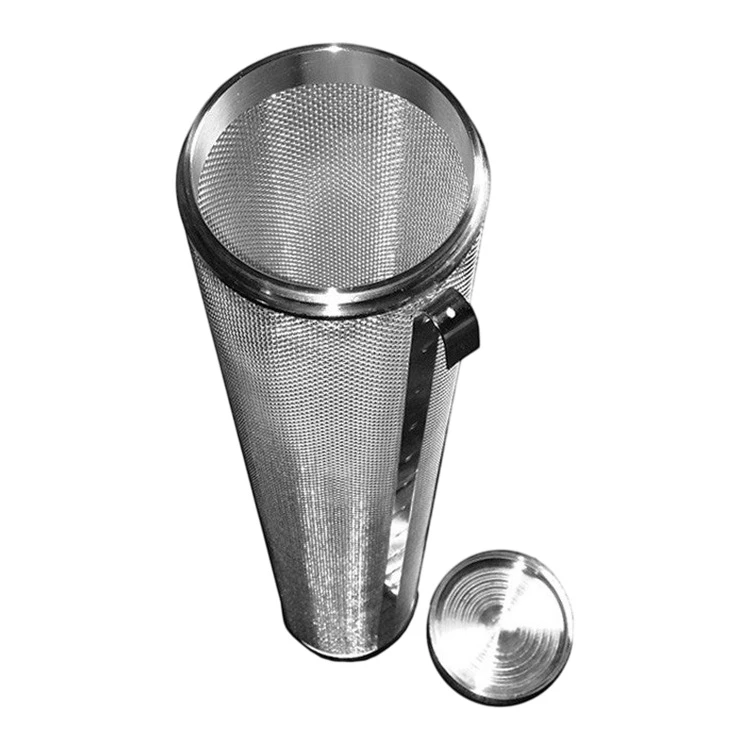

The three construction types each serve different filtration requirements. Perforated plate baskets are formed from stainless steel sheet with punched round or slotted holes. They offer high mechanical strength, good flow capacity, and resistance to impact, making them suitable for coarse filtration and heavy-duty applications. Wedge wire baskets are constructed from V-shaped profile wires resistance-welded to support rods. The V-shaped slots are narrow on the outside and wider internally, which prevents particles from wedging and allows for effective backwashing. Woven wire mesh baskets are lined with stainless steel mesh over a perforated or rod support frame, providing finer filtration for applications requiring higher precision.
Material Selection and Corrosion Resistance
The basket material is selected based on the fluid being processed and the operating environment. Standard material options include stainless steel 304, 304L, 316, and 316L. For more demanding conditions, we offer 2205 duplex stainless steel, 904L, Hastelloy C276, and titanium. These materials provide resistance to corrosion from acids, alkalis, salts, and other aggressive media. The basket can also be supplied with electropolished surfaces for applications in the food, beverage, and pharmaceutical industries where hygiene and cleanability are required.
Industrial Applications
Stainless steel filter baskets are used across a broad range of industries. In water treatment, they serve as strainers in intake water filtration, cooling water systems, and wastewater treatment. In the chemical and petrochemical industries, they protect pumps, valves, and other equipment from damage caused by solid contaminants. In food and beverage production, they are used for syrup filtration, juice clarification, beer brewing, and sugar refining. In pharmaceutical manufacturing, they provide sterile filtration and product recovery. They are also found in mining, pulp and paper, and industrial processing applications.
Custom Manufacturing and Quality Assurance
Anping County Yan Zhao Mining Sieve Mesh Co., Ltd. has been manufacturing stainless steel filter baskets for over 20 years. Our facility operates more than 60 production units under the ISO9001:2008 quality management system. Each basket is custom manufactured to customer specifications. We support OEM/ODM services and can produce to technical drawings. For custom baskets, we confirm material grade, construction type, outer diameter, height, hole or slot size, and end connection details before production. A sample can be provided for confirmation before mass production. Lead time typically ranges from 7 to 30 days. We perform a 100% final inspection before packing. For export, baskets are sprayed with anti-rust oil, wrapped with foam padding, and packed in fumigation-free plywood cases.
Product Specifications
|
Parameter |
Description |
|
Material |
304, 316L stainless steel; 2205 duplex, Hastelloy, titanium on request |
|
Construction Types |
Perforated plate, wedge wire, woven wire mesh, or composite |
|
Hole/Slot Opening |
Perforated: 0.5–20 mm; Wedge wire: 0.025–3.0 mm; Mesh: 10–400 mesh |
|
Outer Diameter |
50–1000 mm (custom) |
|
Overall Height |
100–2000 mm (custom) |
|
Top End |
Flanged, rolled rim, Tri-clamp, threaded, or plain |
